Run Your Own App with MySQL on Kubernetes with Kusion Server

In this tutorial, we will learn how to create and manage our own application with MySQL database on Kubernetes with Kusion. The locally deployed MySQL database is declared as an accessory in the config codes and will be automatically created and managed by Kusion.

Prerequisites​

Before we start to play with this example, we need to have the Kusion Server installed and run an accessible Kubernetes cluster. Besides, we need to have a GitHub account to initiate our own config code repository as Source in Kusion.

info

Please walk through this documentation before proceeding with the upcoming instructions.

Initialize Source​

First, we need to create our own application configuration code repository as Source in Kusion.

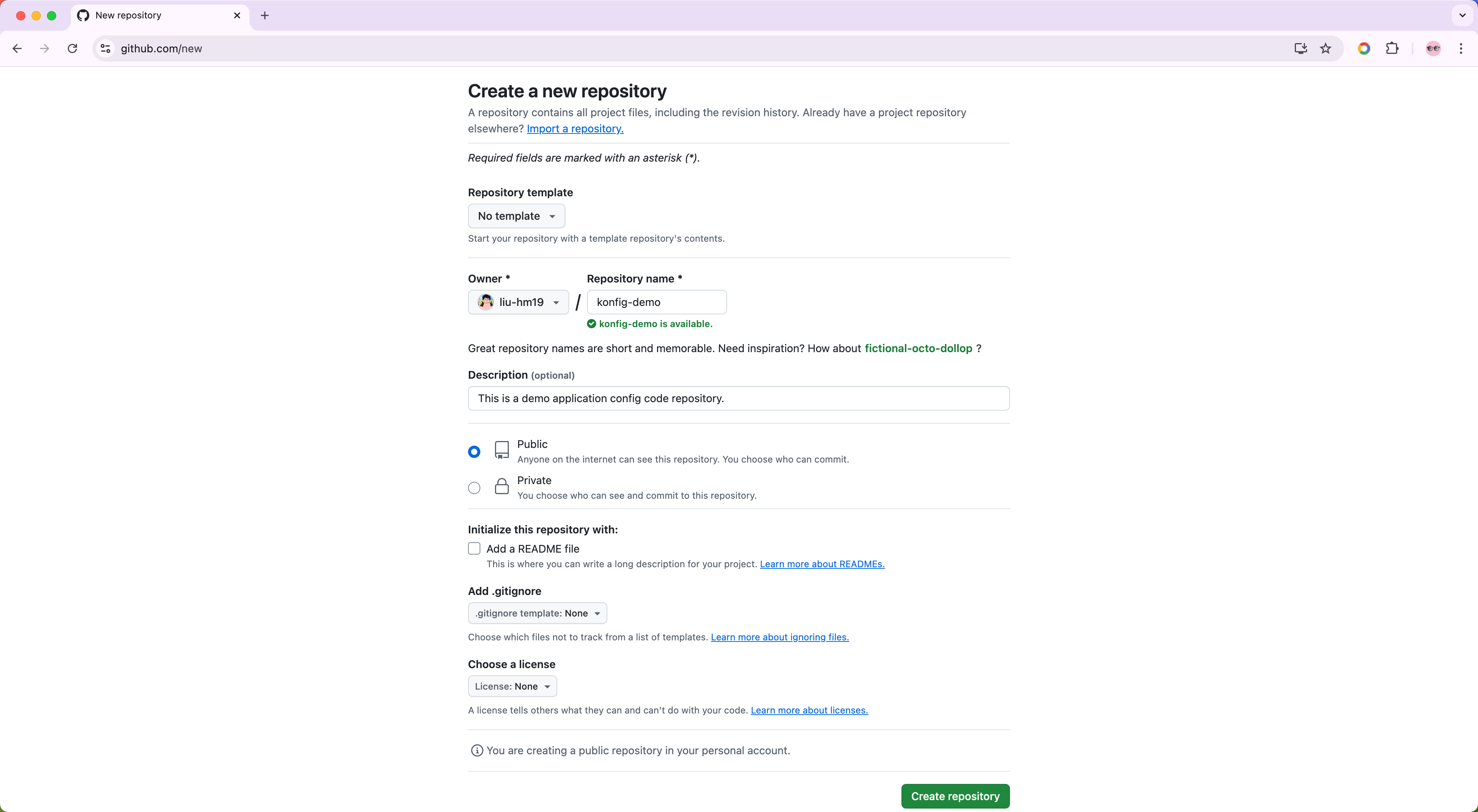

create konfig demo

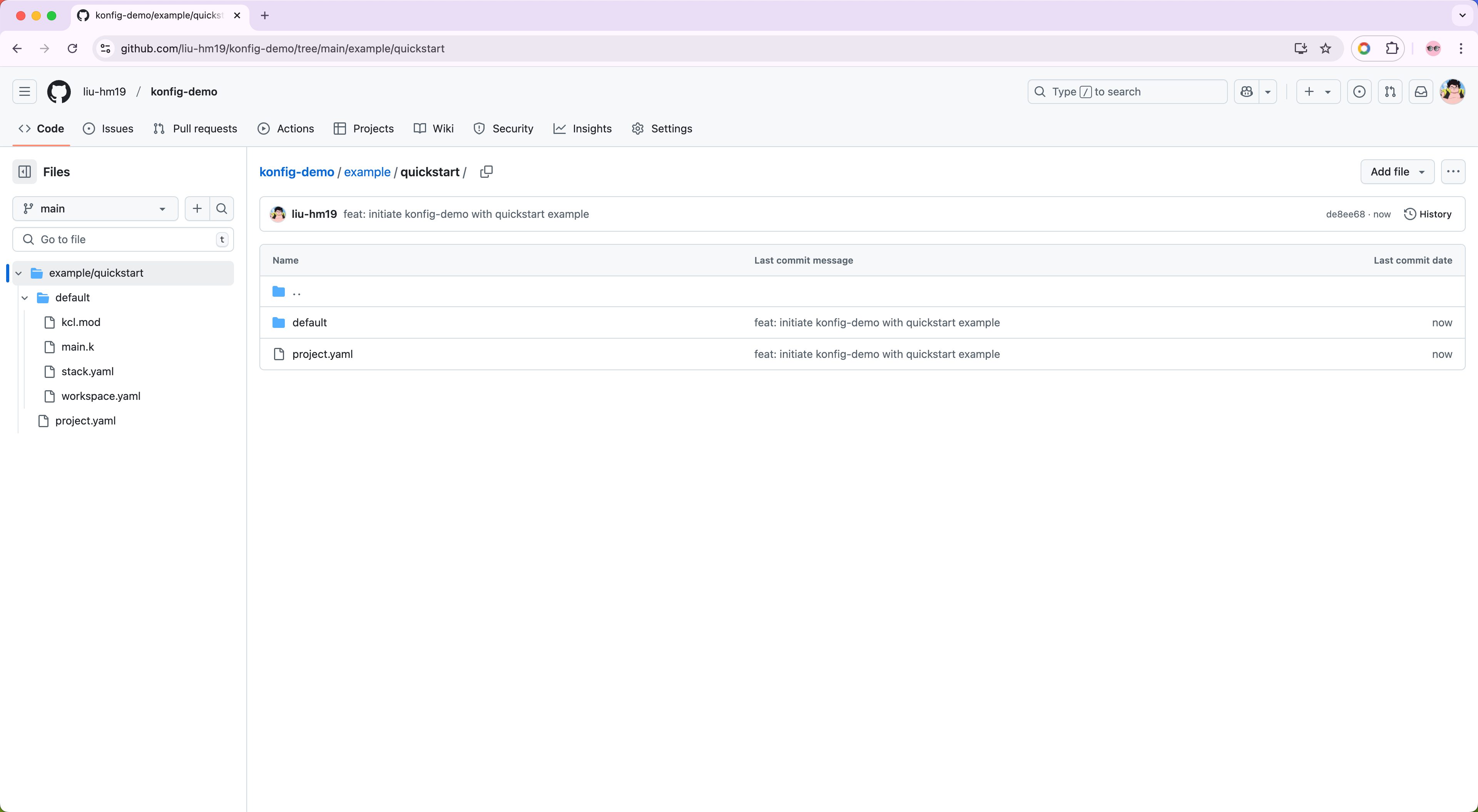

We can simply copy the quickstart example in KusionStack/konfig into our new repo.

initiated konfig demo

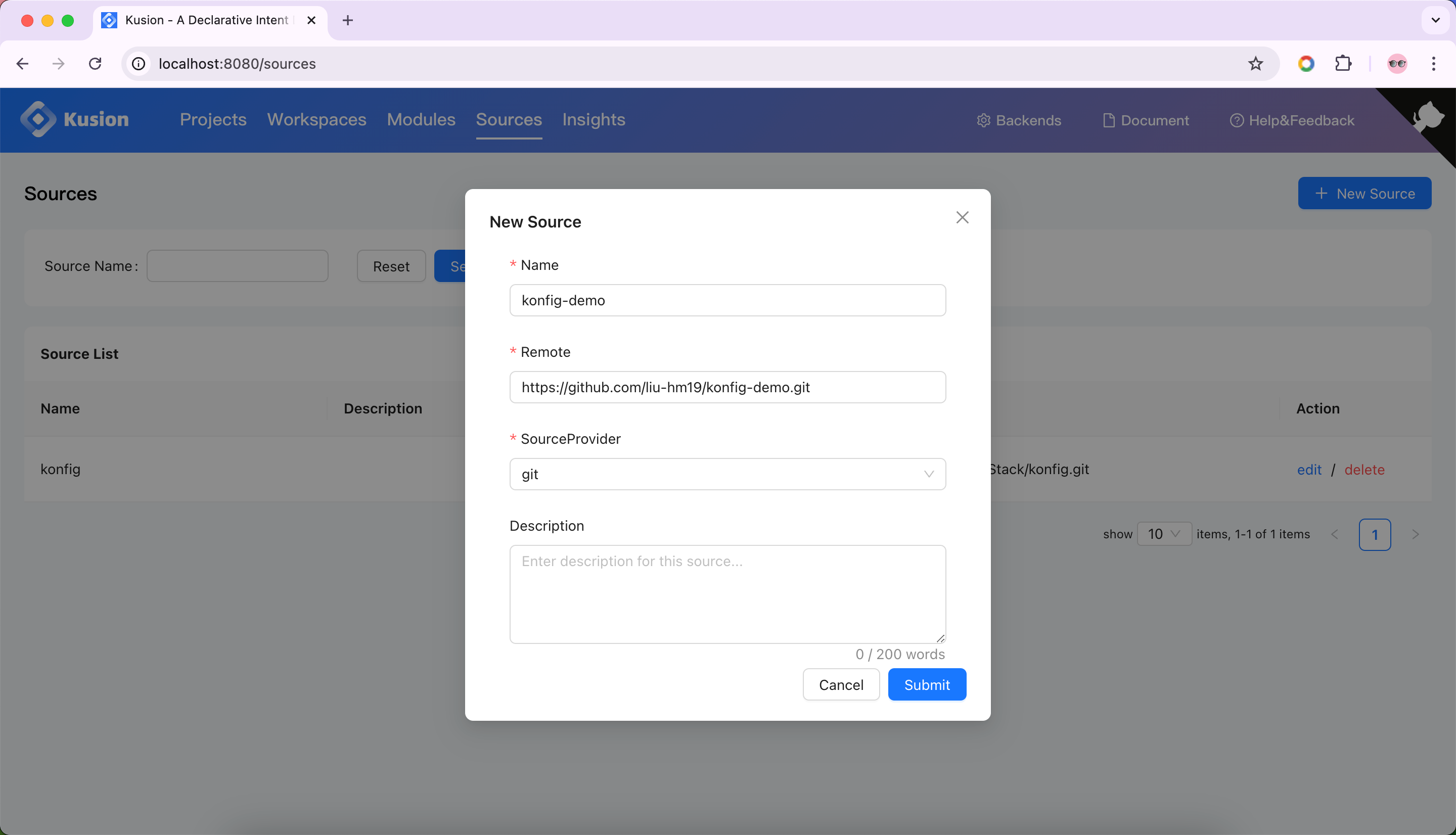

Then, we need to create a new Source with the created repository url.

create new source

Register Module And Update Workspace​

Next, we can register the mysql module provided by KusionStack community in Kusion.

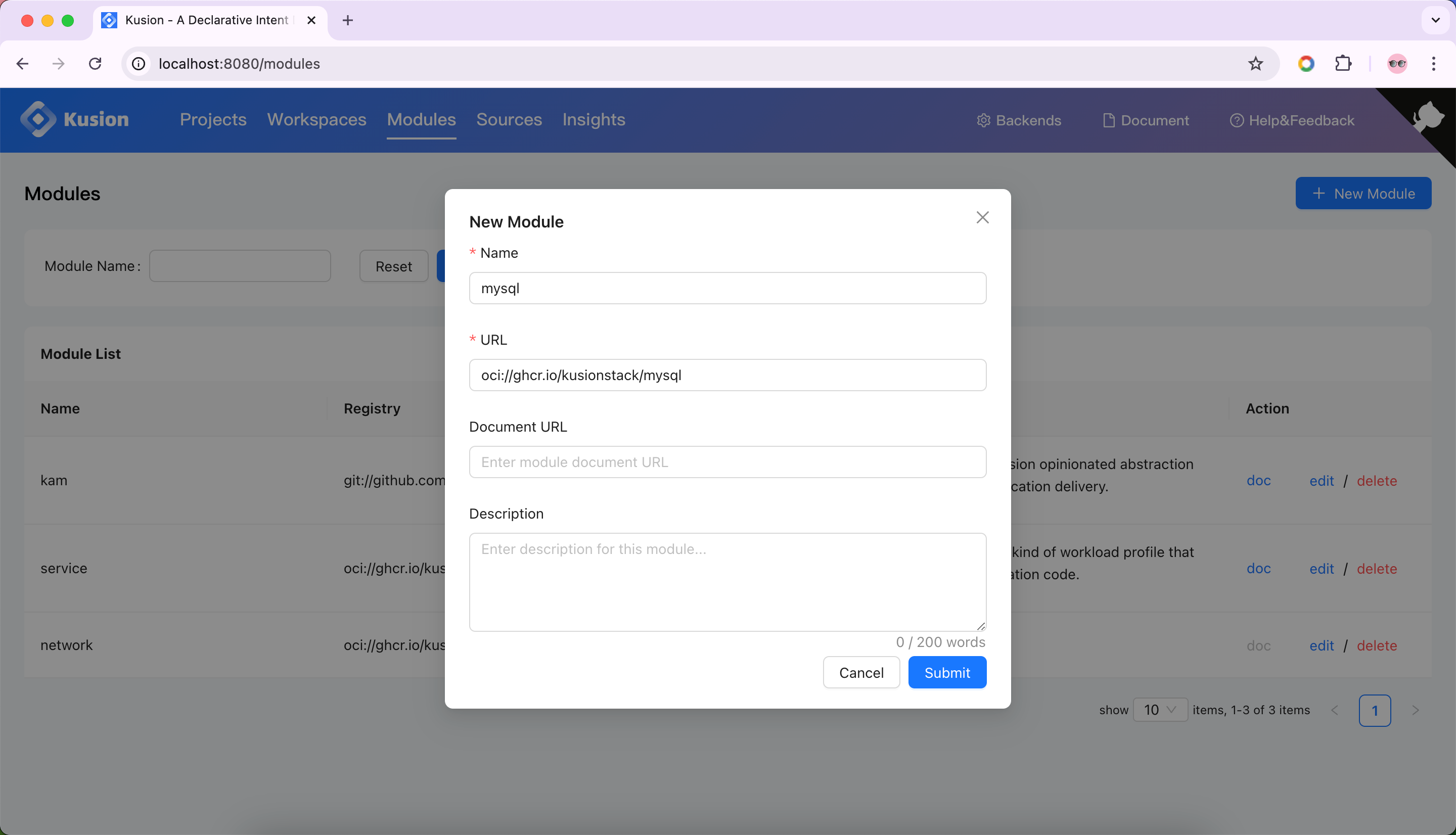

register mysql module

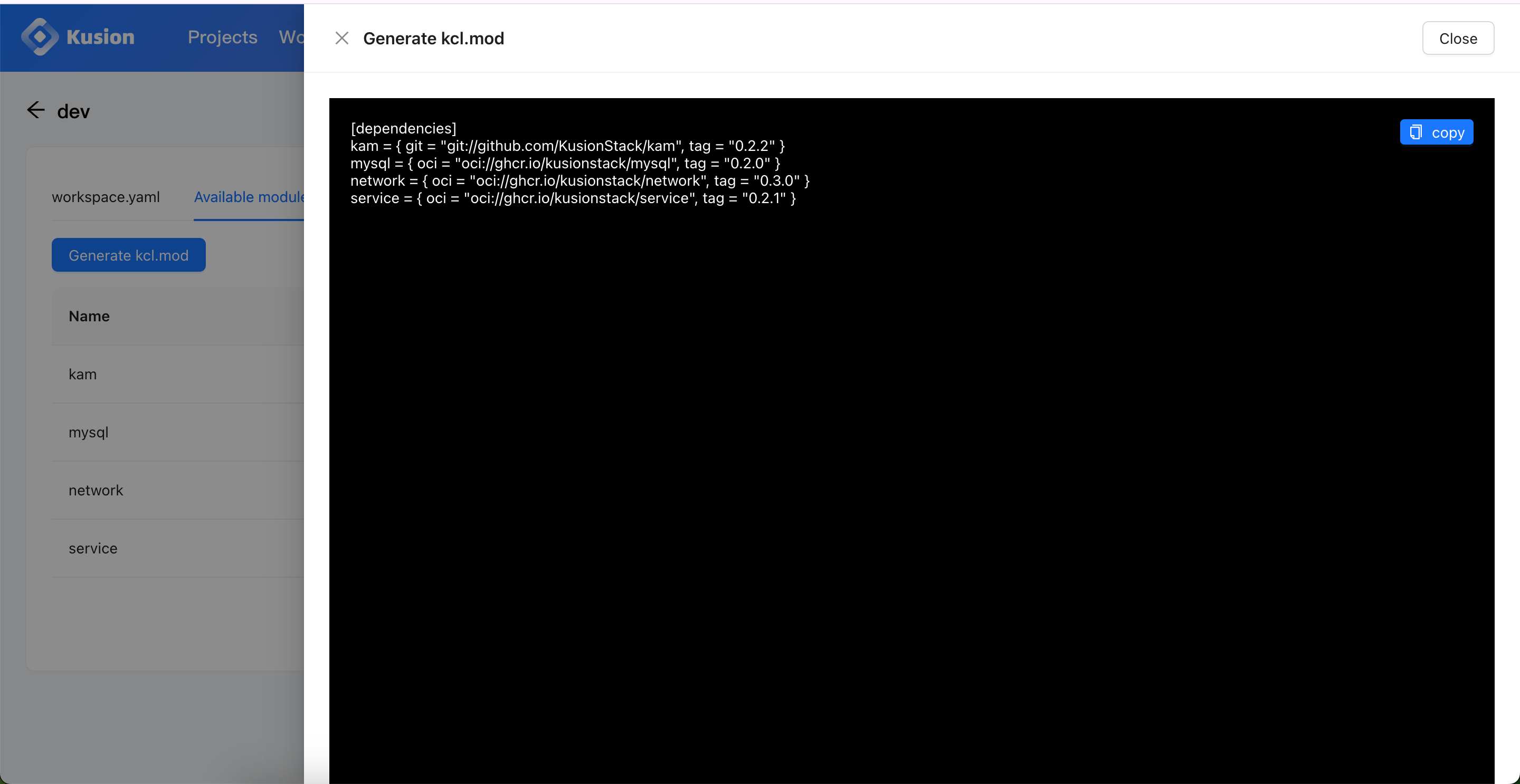

After the registration, we should add the mysql module to the dev workspace and re-generate the kcl.mod.

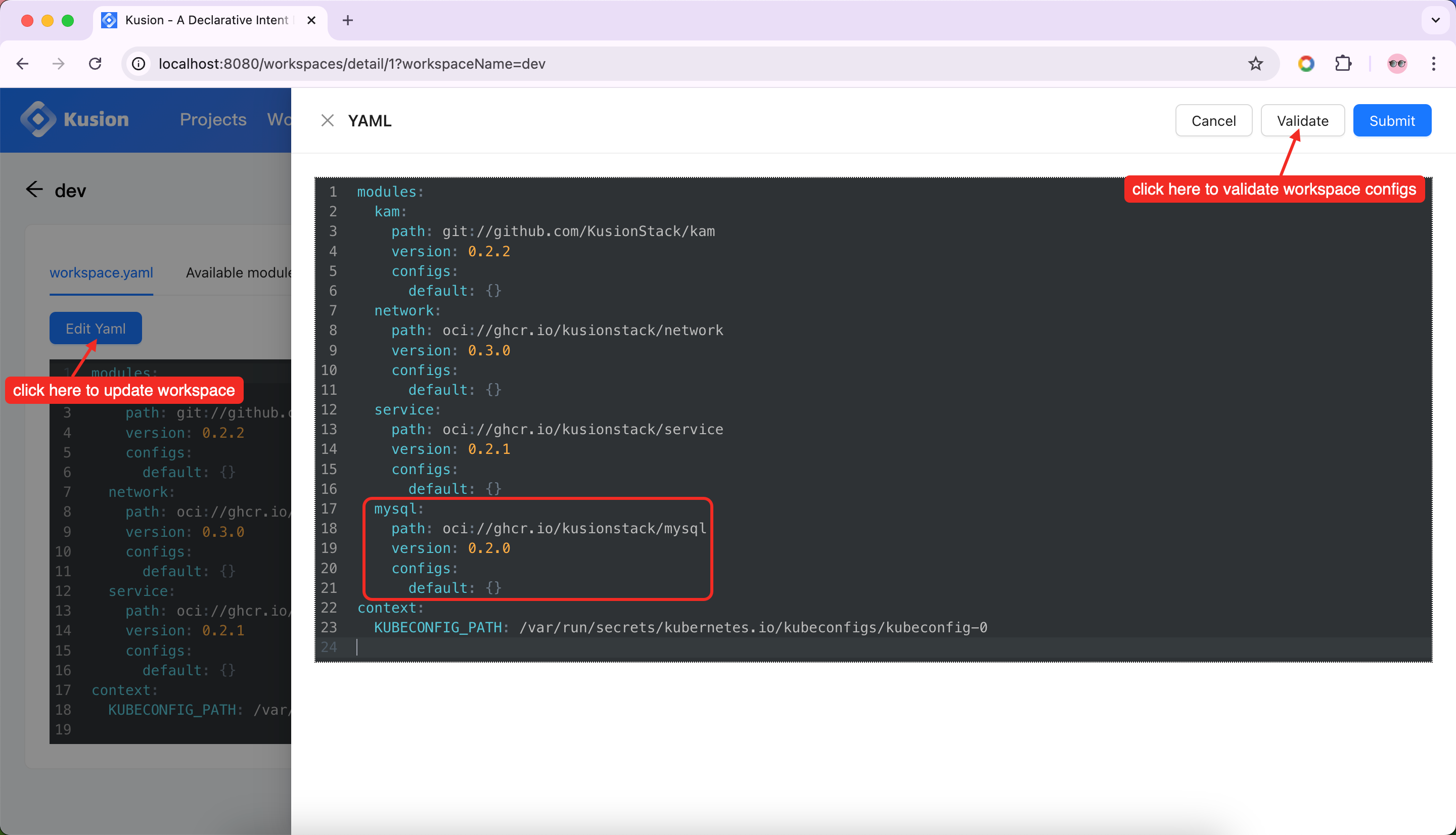

update workspace configs

updated kcl.mod

We can copy and paste to save the updated kcl.mod.

Create Project and Stack​

Next, we can create a new Project with our own config code repo.

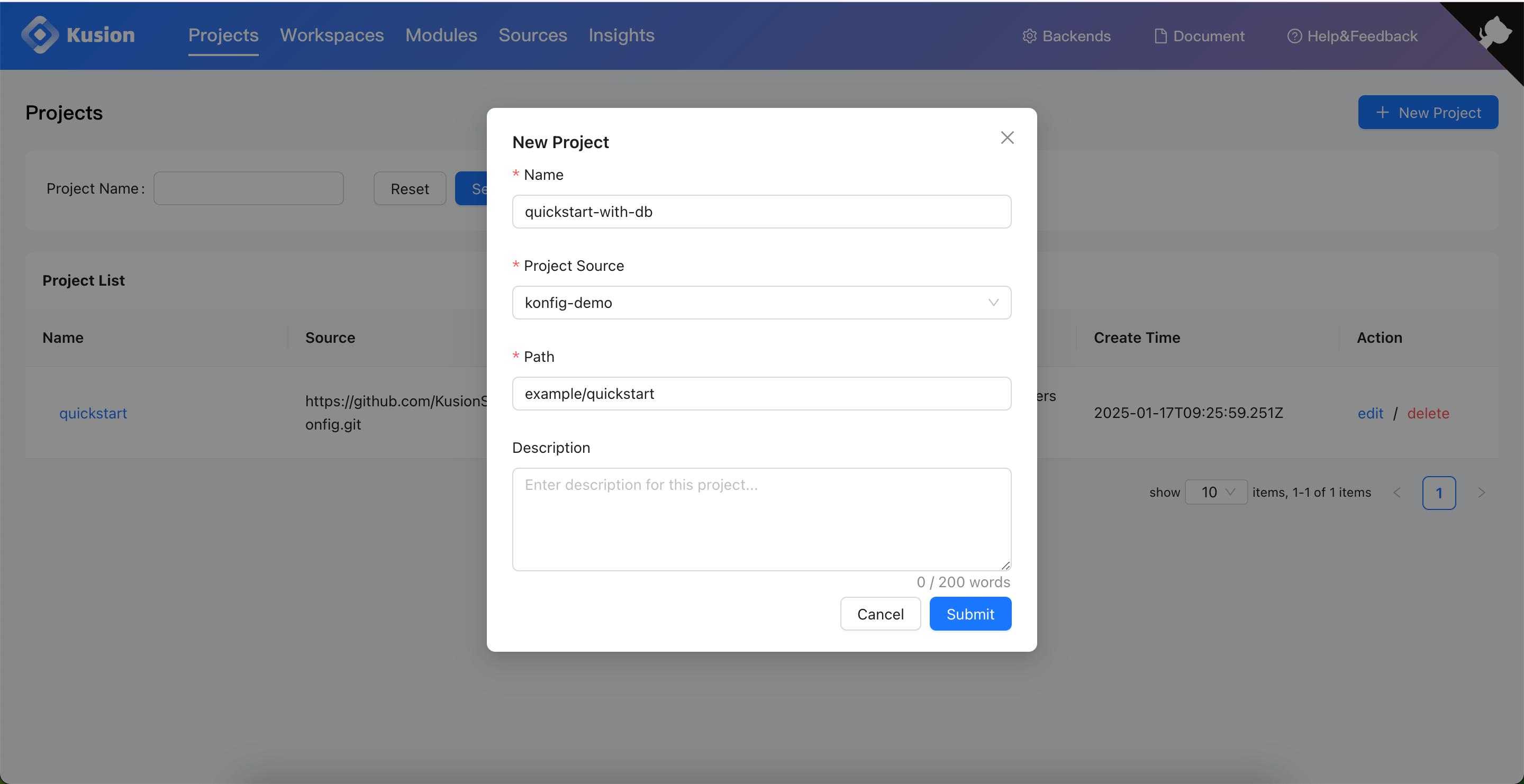

create new project

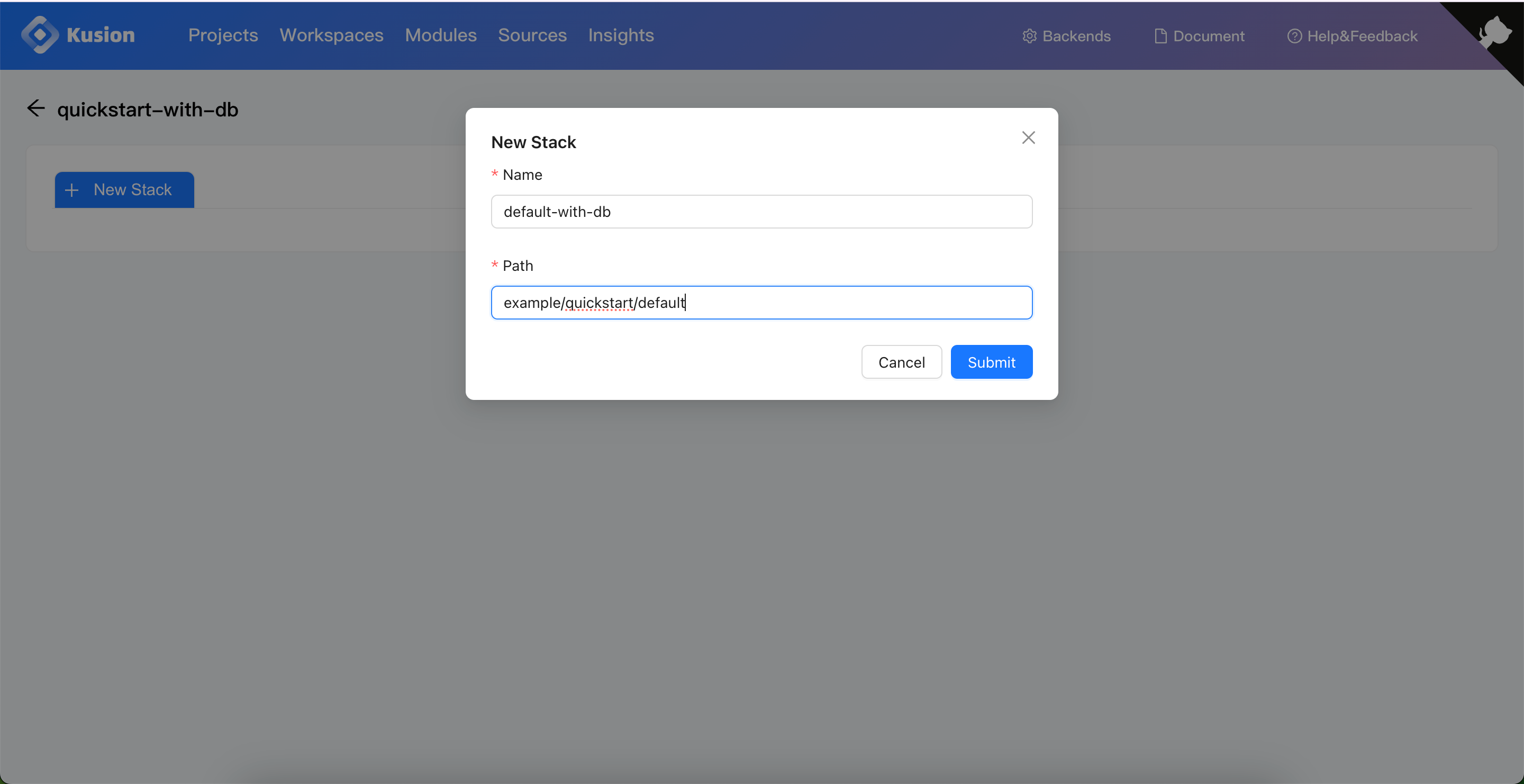

And similarly, create a new Stack.

create new stack

Add MySQL Accessory​

As you can see, the demo application page in this doc indicates that the MySQL database is not ready yet. Hence, we will now add a MySQL database as an accessory for the workload.

We should first update the module dependencies in the default/kcl.mod with the ones we previously stored, so that we can use the MySQL module in the configuration codes.

[dependencies]
kam = { git = "git://github.com/KusionStack/kam", tag = "0.2.2" }
mysql = { oci = "oci://ghcr.io/kusionstack/mysql", tag = "0.2.0" }
network = { oci = "oci://ghcr.io/kusionstack/network", tag = "0.3.0" }
service = { oci = "oci://ghcr.io/kusionstack/service", tag = "0.2.1" }

We can update the default/main.k with the following configuration codes:

import kam.v1.app_configuration as ac
import service
import service.container as c
import network as n
import mysql

# main.k declares the customized configuration codes for default-with-db stack.
quickstart: ac.AppConfiguration {
    workload: service.Service {
        containers: {
            quickstart: c.Container {
                image: "kusionstack/kusion-quickstart:latest"
                env: {
                    "DB_HOST": "$(KUSION_DB_HOST_QUICKSTARTWITHDBDEFAULTWITHDBQU)"
                    "DB_USERNAME": "$(KUSION_DB_USERNAME_QUICKSTARTWITHDBDEFAULTWITHDBQU)"
                    "DB_PASSWORD": "$(KUSION_DB_PASSWORD_QUICKSTARTWITHDBDEFAULTWITHDBQU)"
                }
            }
        }
    }
    accessories: {
        "network": n.Network {
            ports: [
                n.Port {
                    port: 8080
                }
            ]
        }
        "mysql": mysql.MySQL {
            type: "local"
            version: "8.0"
        }
    }
}

The configuration codes above declare a local mysql.MySQL with the engine version of 8.0 as an accessory for the application workload. The necessary Kubernetes resources for deploying and using the local MySQL database will be generated and users can get the host, username and password of the database through the MySQL Credentials And Connectivity of Kusion in application containers.

info

For more information about the naming convention of Kusion built-in MySQL module, you can refer to Module Naming Convention.

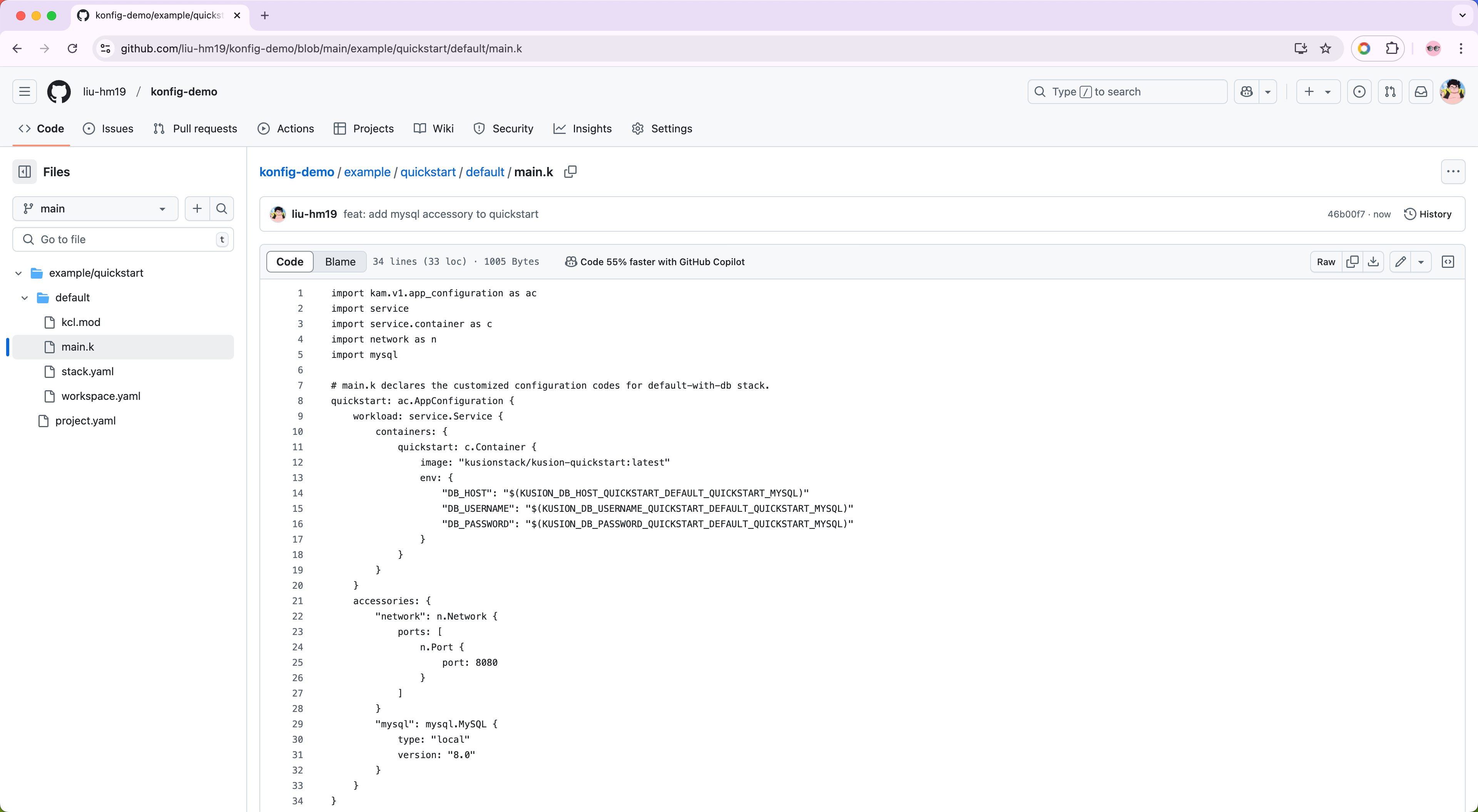

After that, we need to update the remote repository with the modified config code files.

add mysql accessory

Application Delivery​

Now we can start to run the application delivery!

Preview Changes​

We can first preview the changes to the application resources that are going to be deployed to the dev workspace.

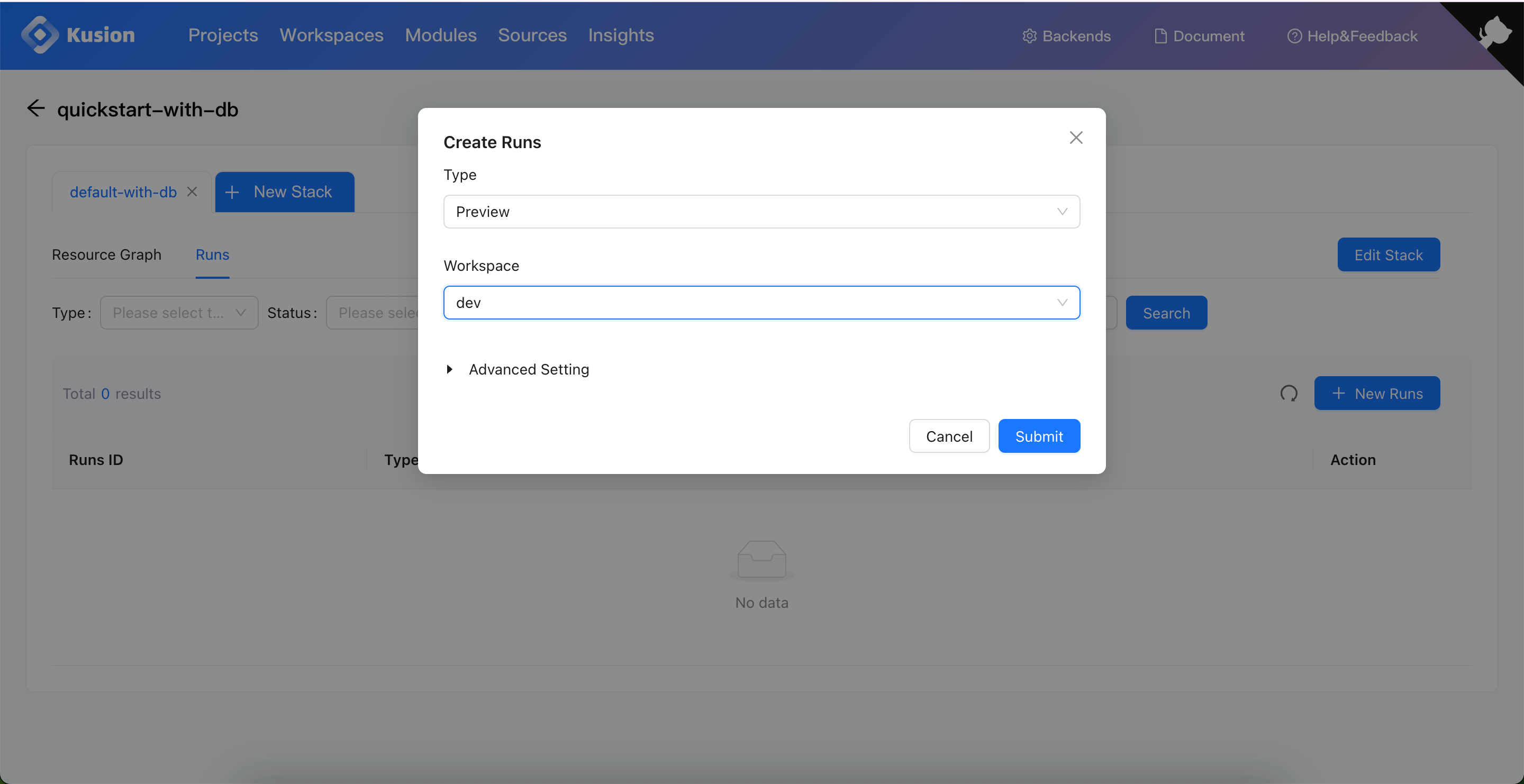

preview quickstart with db

We can click the Detail button to view the Preview results, and we can find that compared to the results in this doc, the mysql accessory has brought us database related Kubernetes resources.

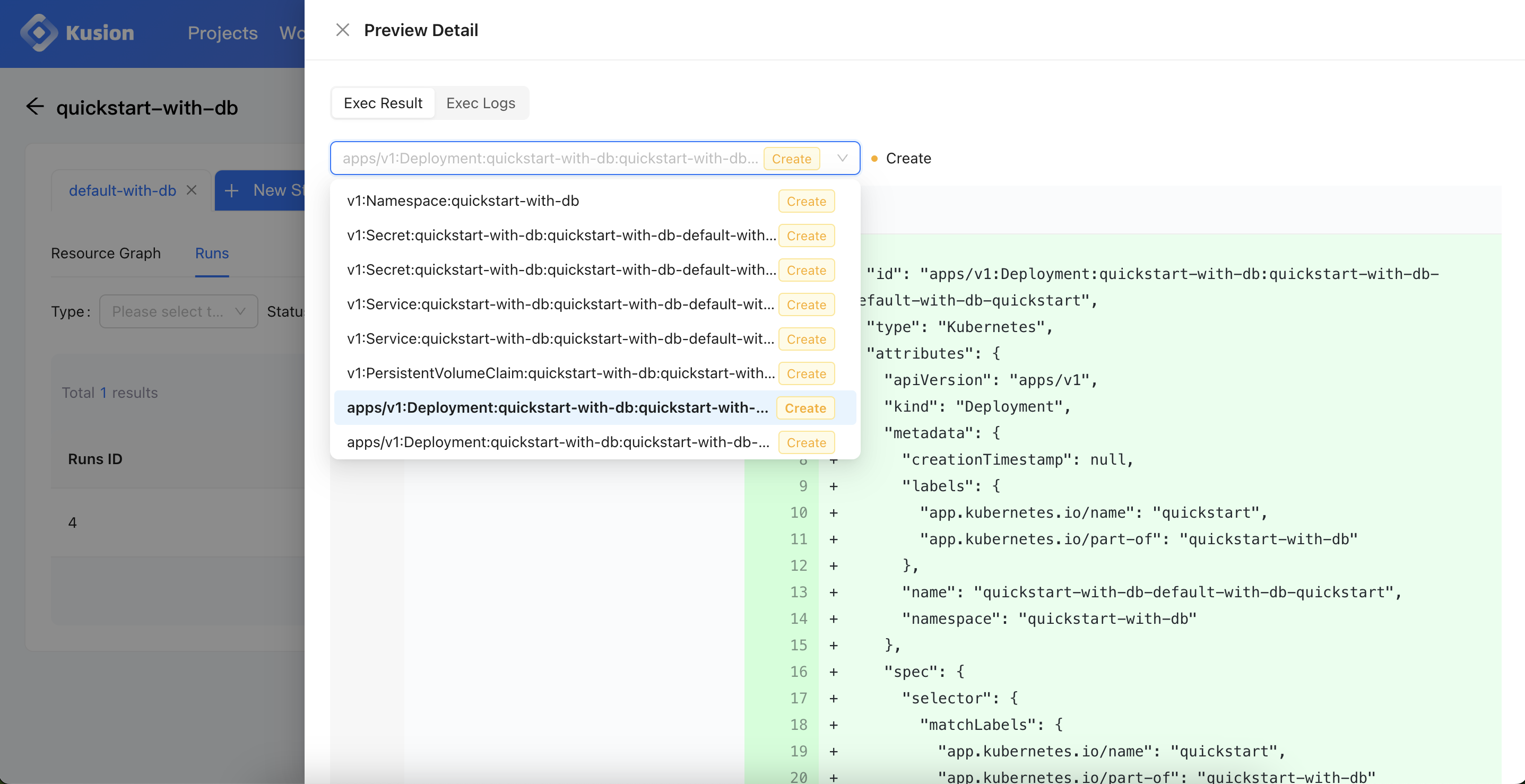

preview with db

Apply Resources​

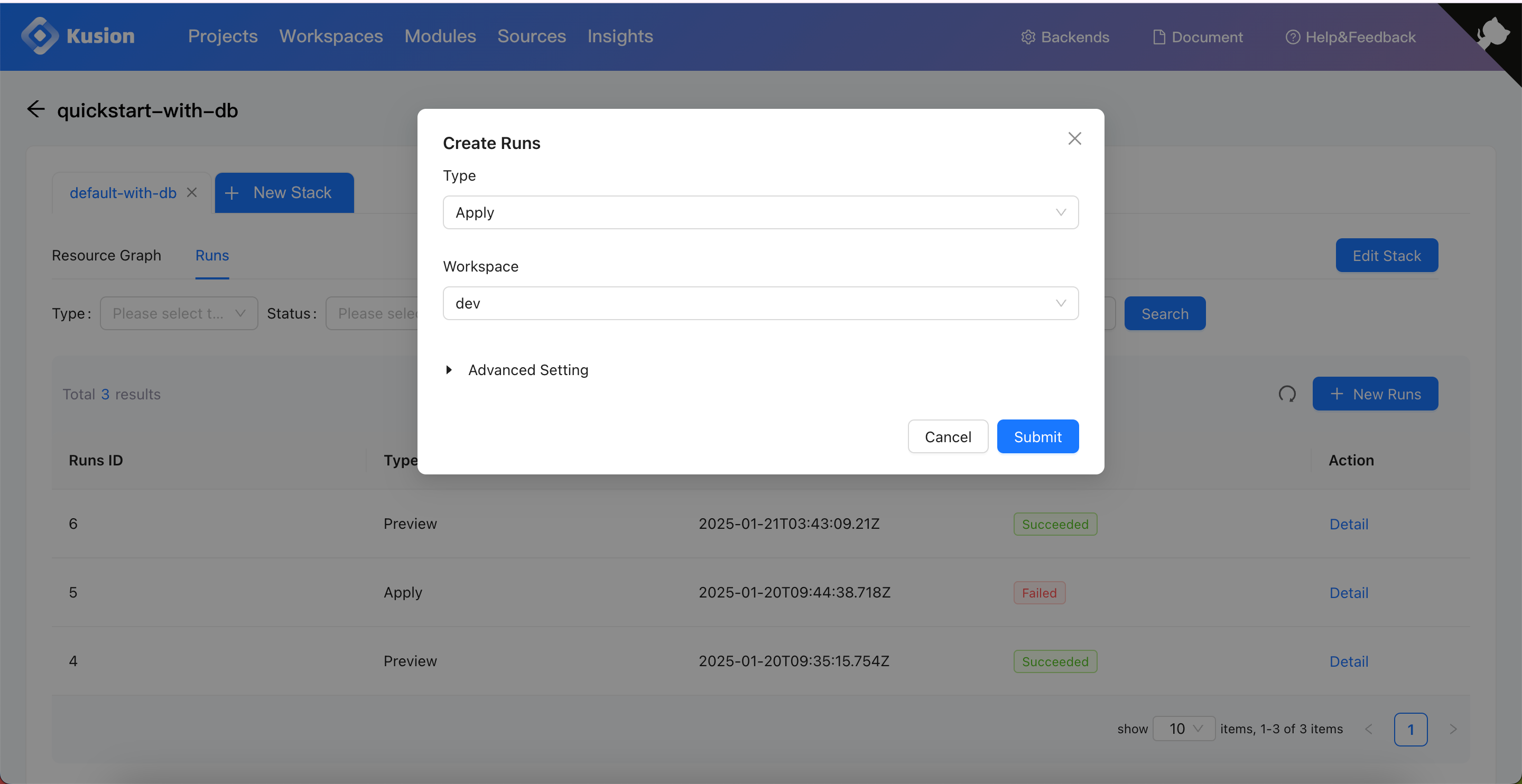

Then we can create a Run operation of the type of Apply to deploy the previewed application resources to the Kubernetes cluster corresponding to the dev workspace.

create apply with db

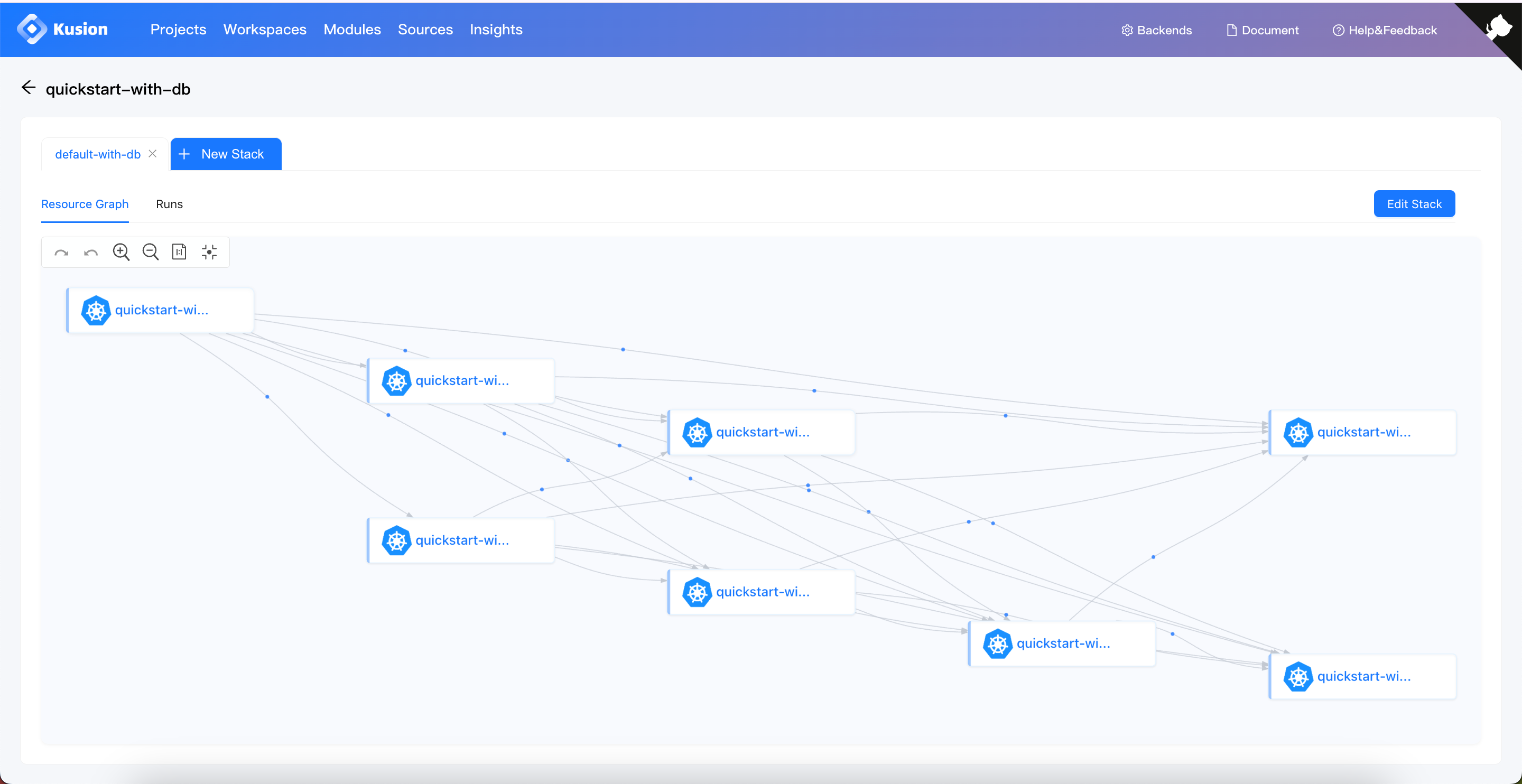

After successfully completing the Apply, we can check the application resource graph, which will display the topology of the application resources related to mysql database, including Kubernetes Deployment, Service, Secret, and PVC.

resource_graph_with_db

Next, we can expose the service of the application we just applied through port-forwarding Kubernetes Pod and verify it in the browser.

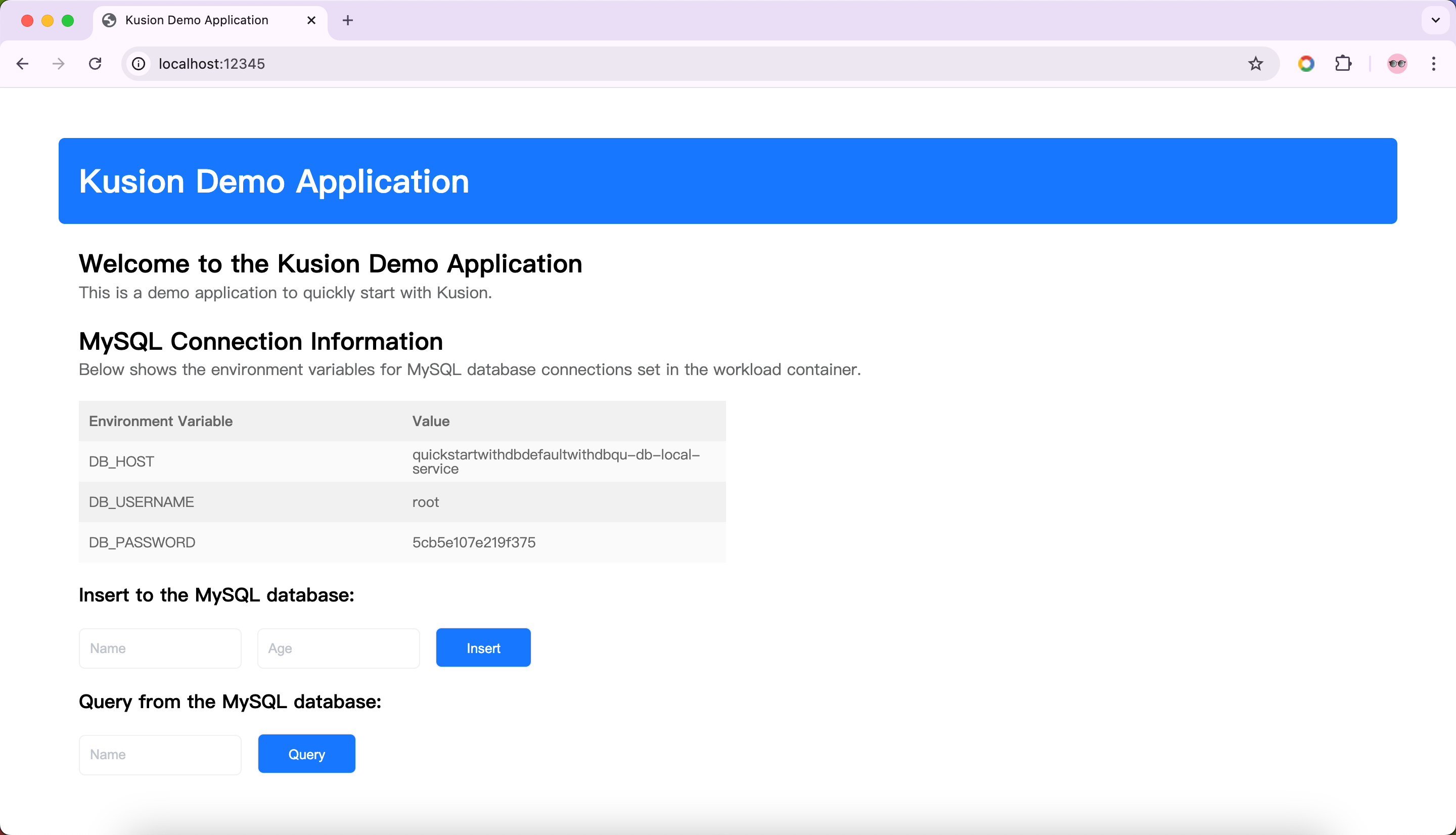

demo application with db

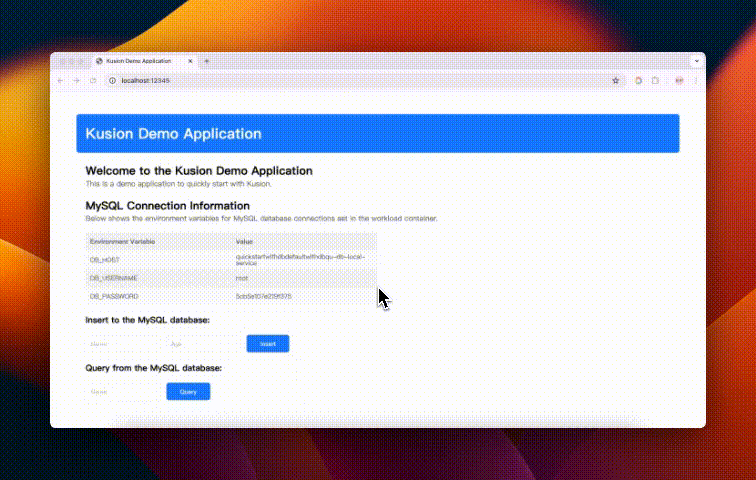

We can find that the application has successfully connected to the MySQL database, and the connection information is also printed on the page. Now please feel free to enjoy the demo application!

demo with db

Delete Application​

We can delete the quickstart demo workload and related accessory resources with the Destroy run:

destroy application
